The build123d Examples

Overview

In the GitHub repository you will find an examples folder.

Most of the examples show the builder and algebra modes.

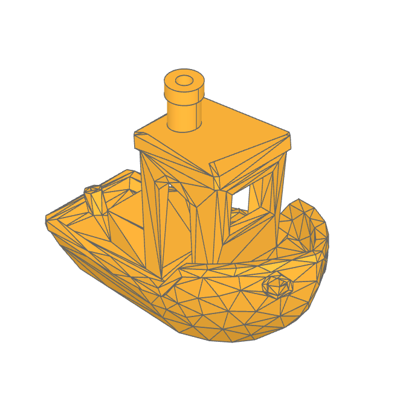

Benchy 🔨

Benchy

Bicycle Tire 🔨

Bicycle Tire

Canadian Flag Blowing in The Wind 🔨 ✏️

Canadian Flag Blowing in The Wind

Cast Bearing Unit 🔨

Cast Bearing Unit

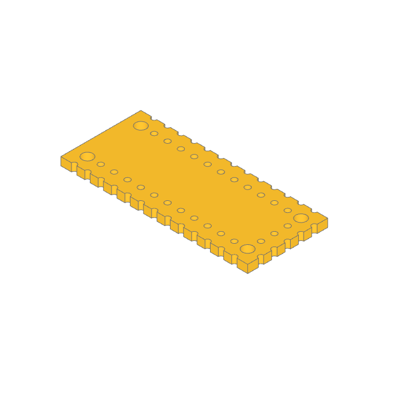

Circuit Board With Holes 🔨 ✏️

Circuit Board With Holes

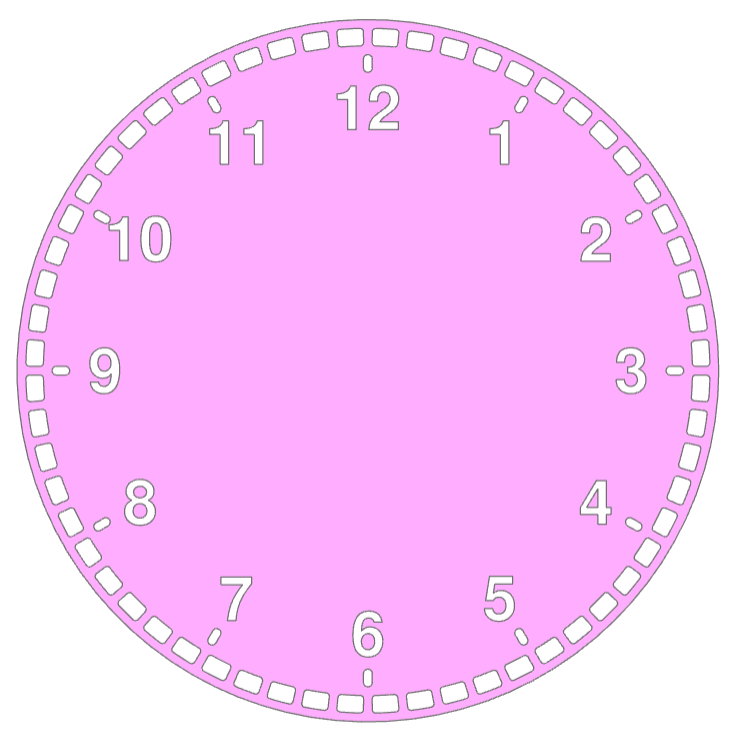

Clock Face 🔨 ✏️

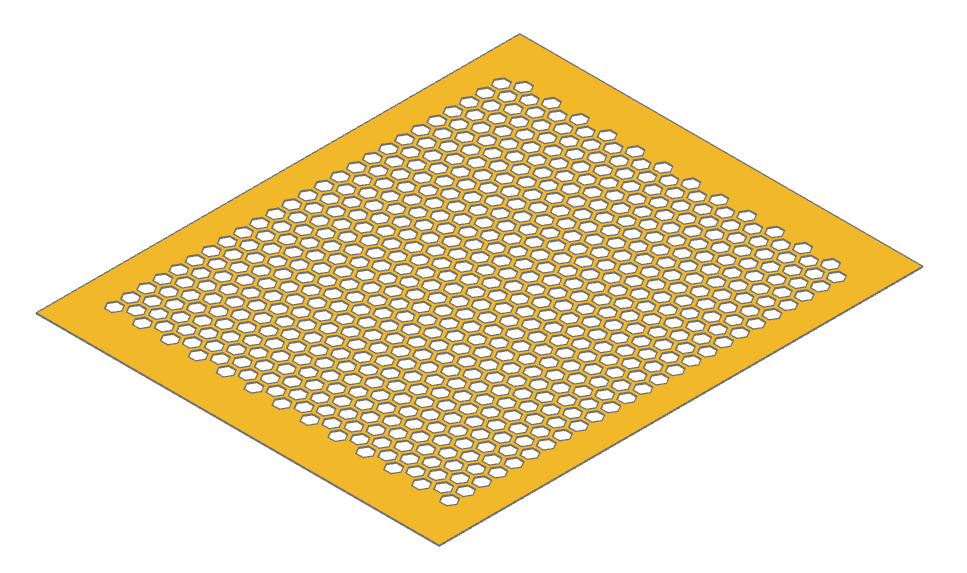

Fast Grid Holes ✏️

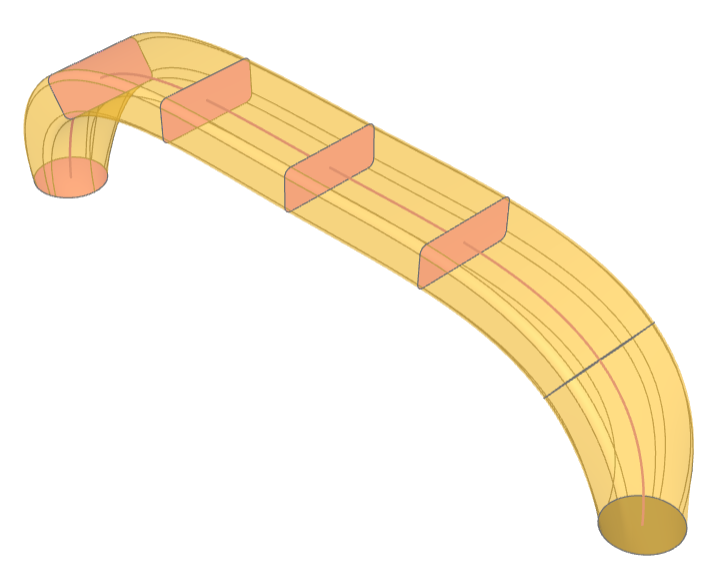

Handle 🔨 ✏️

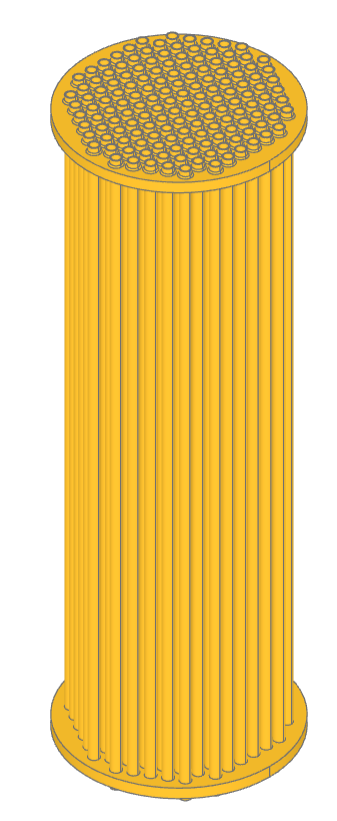

Heat Exchanger 🔨 ✏️

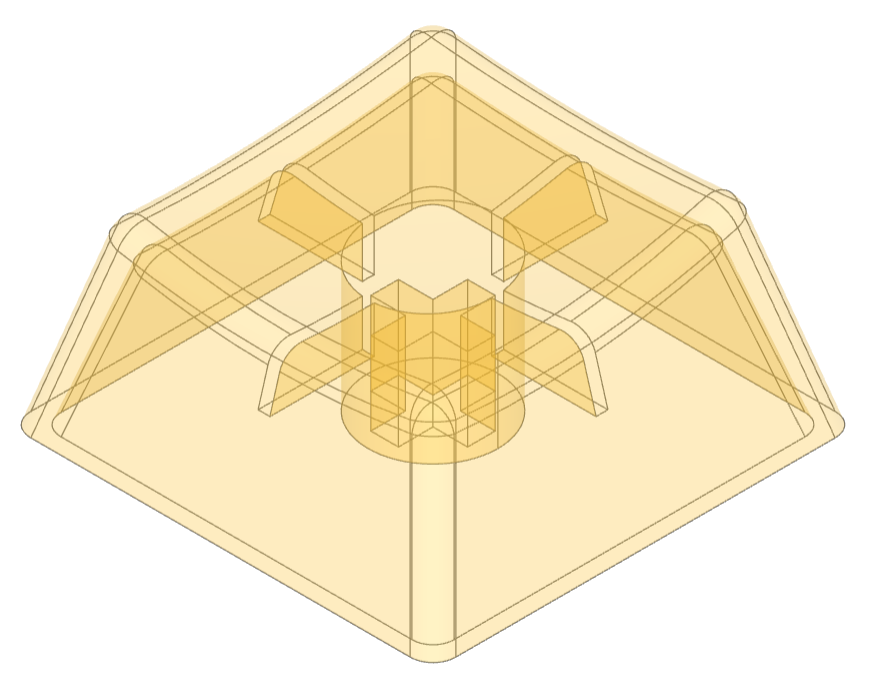

Key Cap 🔨 ✏️

(former) build123d Logo 🔨 ✏️

Former build123d Logo

Maker Coin 🔨

Maker Coin

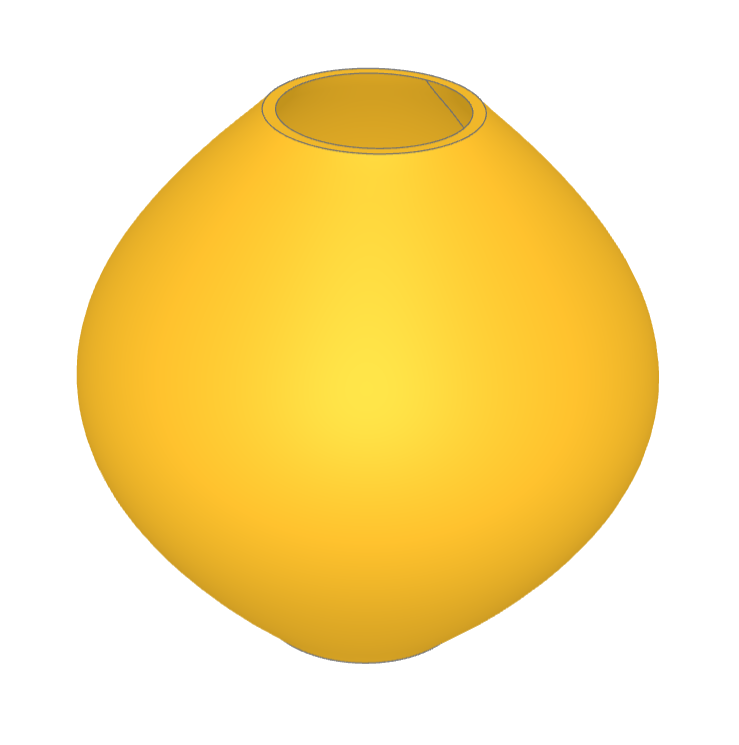

Multi-Sketch Loft 🔨 ✏️

Multi-Sketch Loft

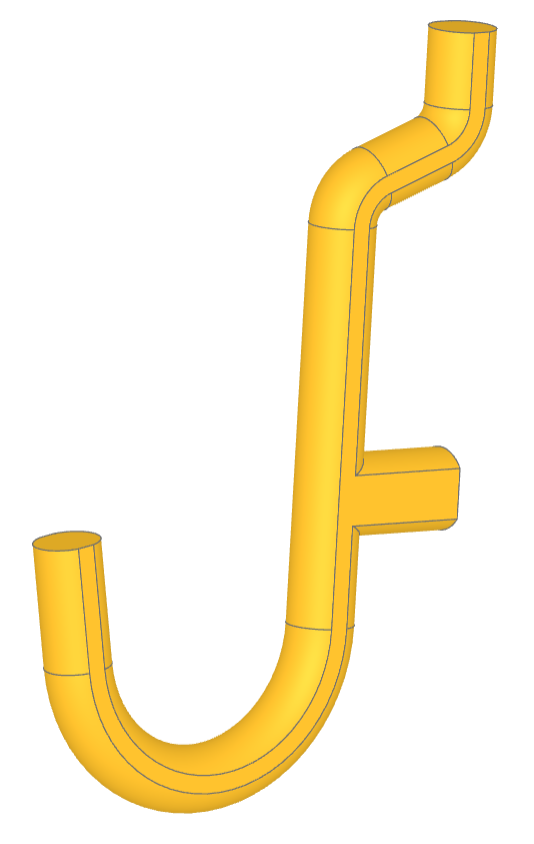

Peg Board J Hook 🔨 ✏️

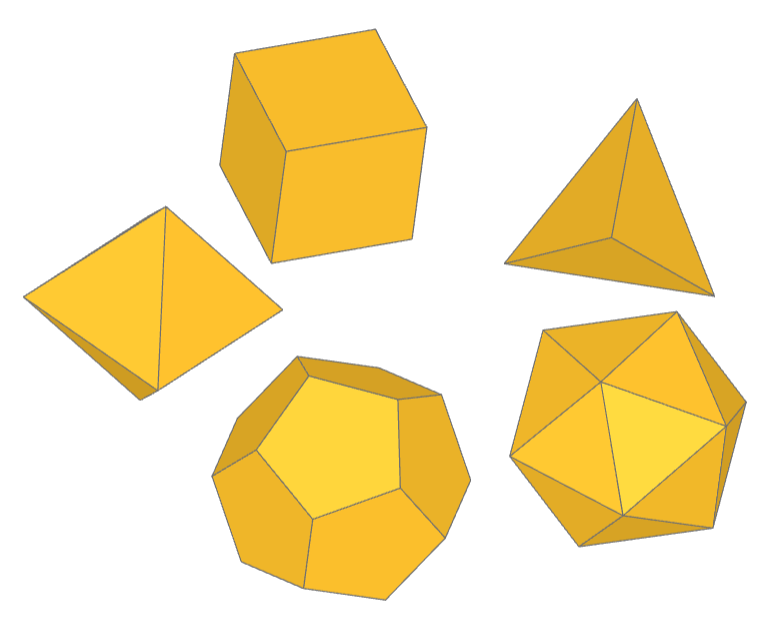

Platonic Solids ✏️

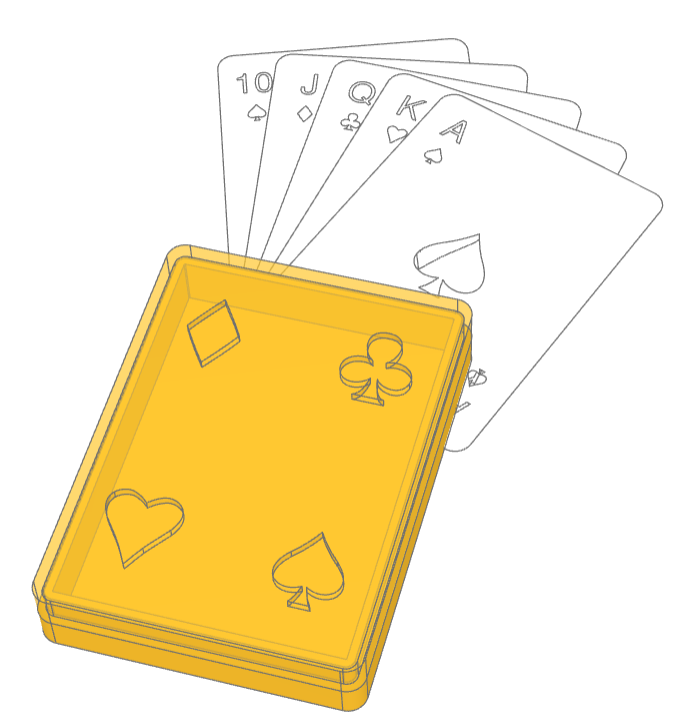

Playing Cards 🔨

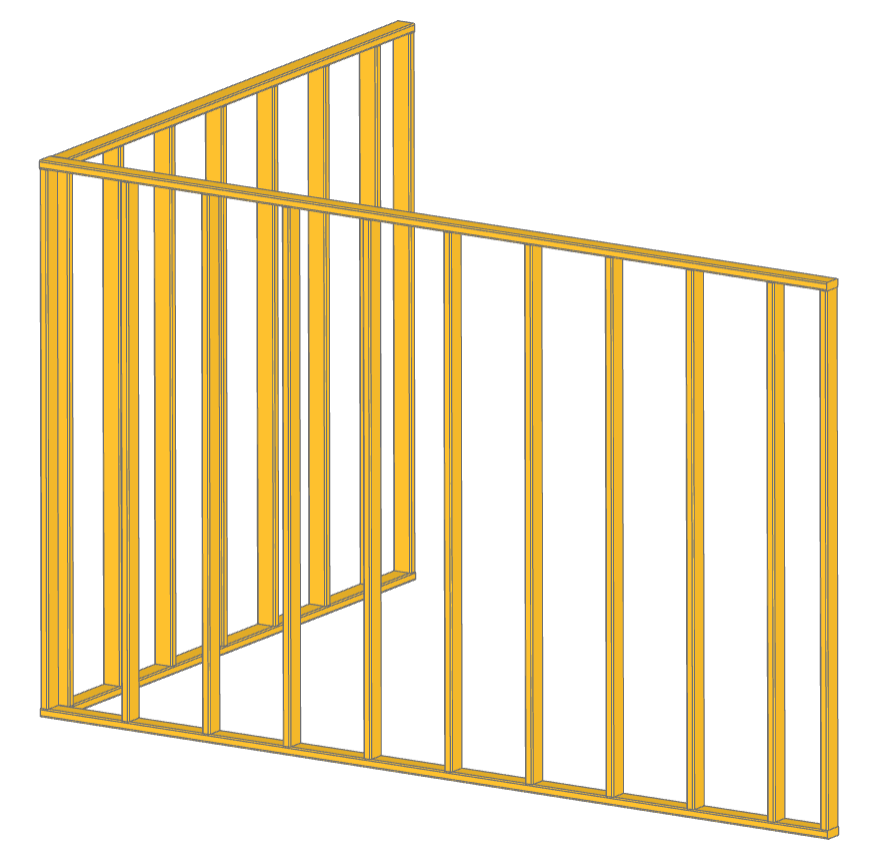

Stud Wall ✏️

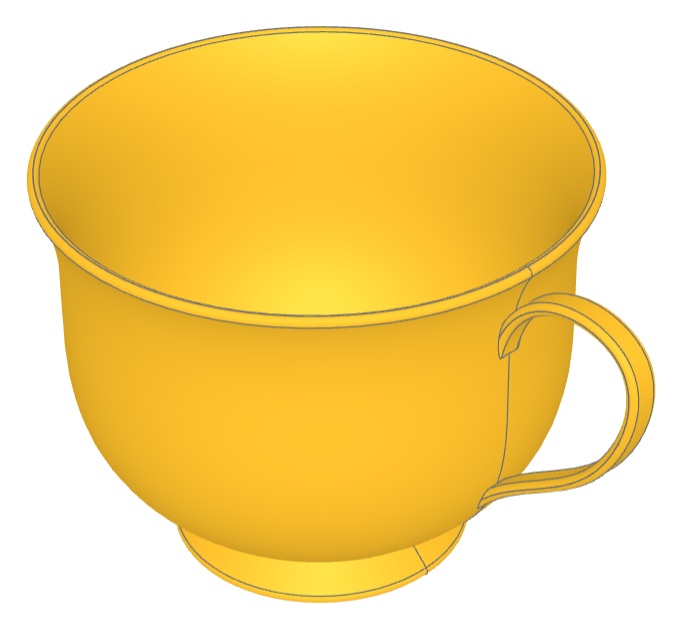

Tea Cup 🔨 ✏️

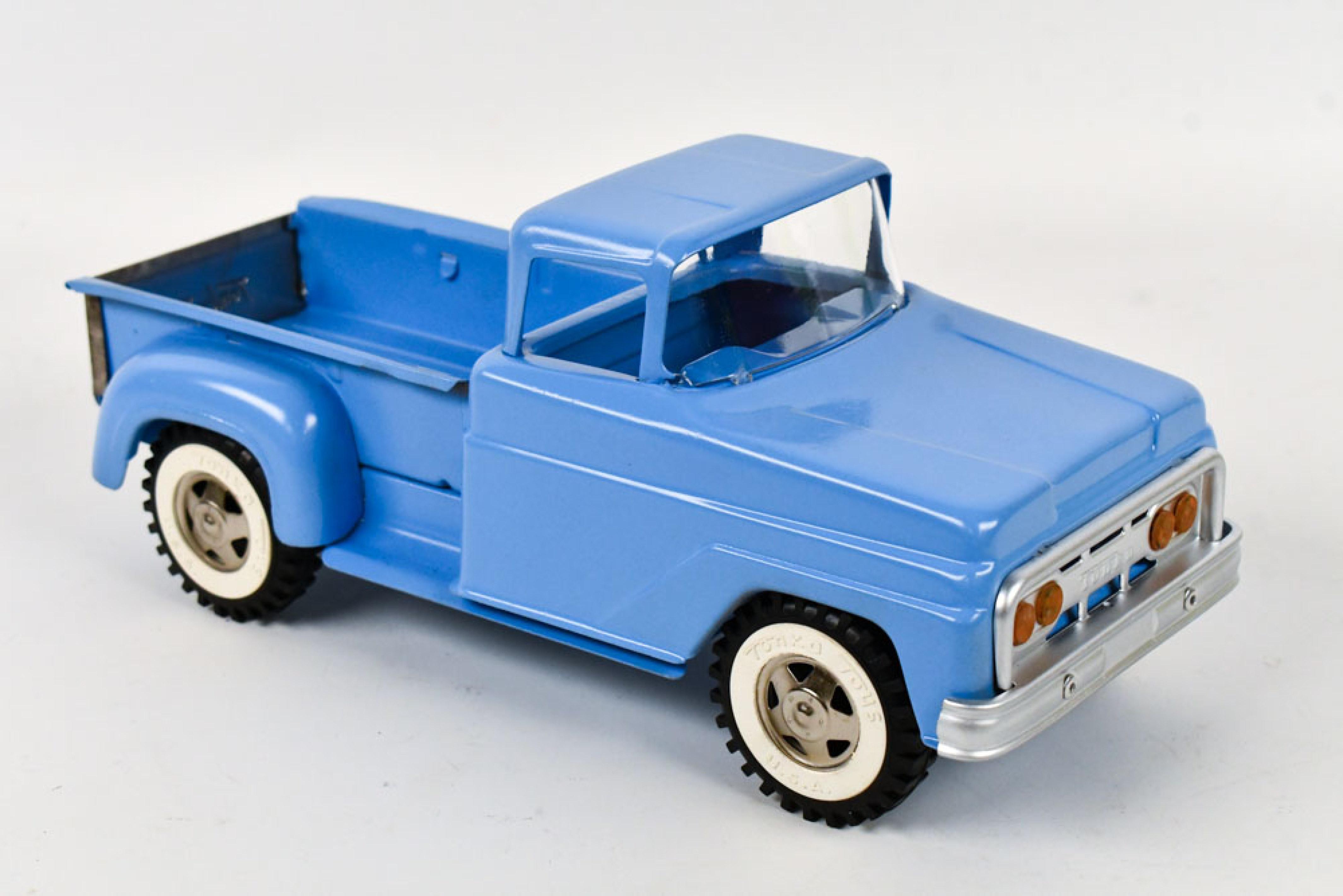

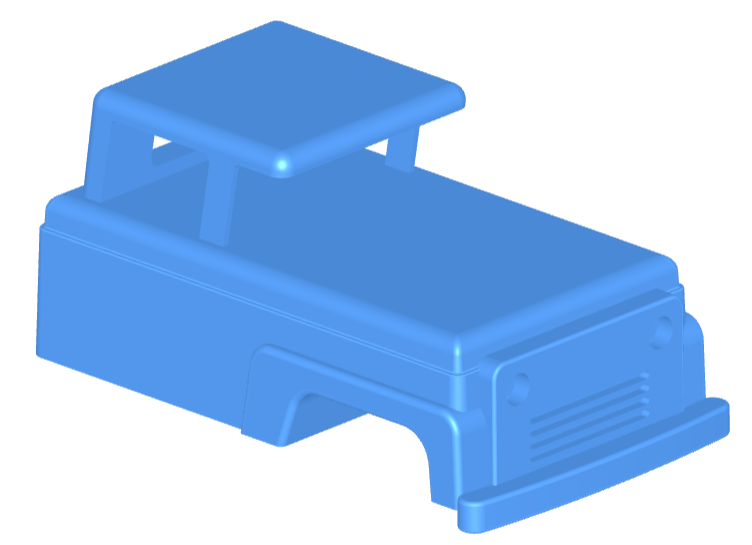

Toy Truck 🔨

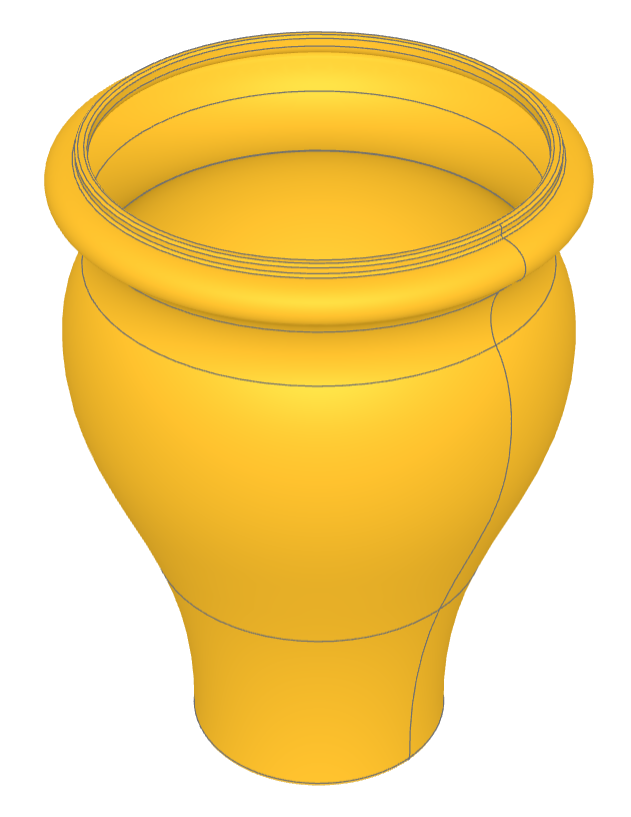

Vase 🔨 ✏️

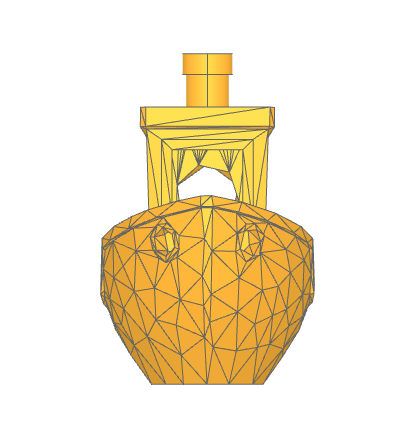

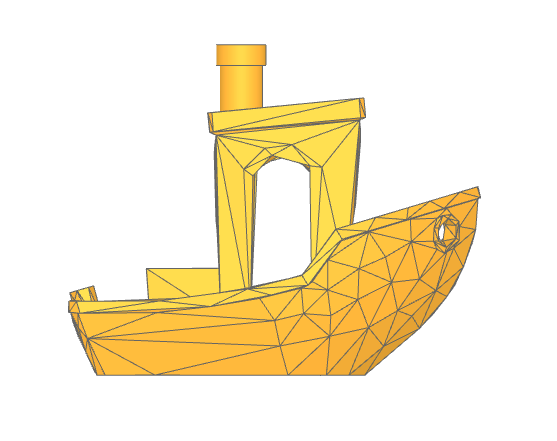

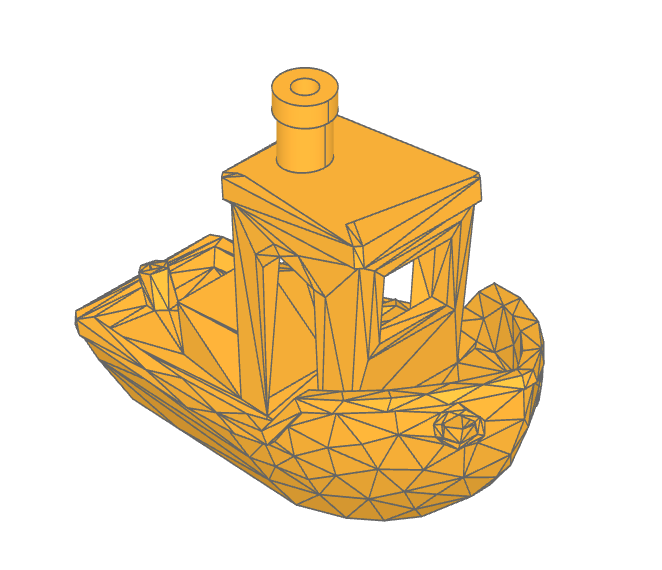

Benchy

The Benchy examples shows how to import a STL model as a Solid object with the class Mesher and modify it by replacing chimney with a BREP version.

Benchy STL model: low_poly_benchy.stl

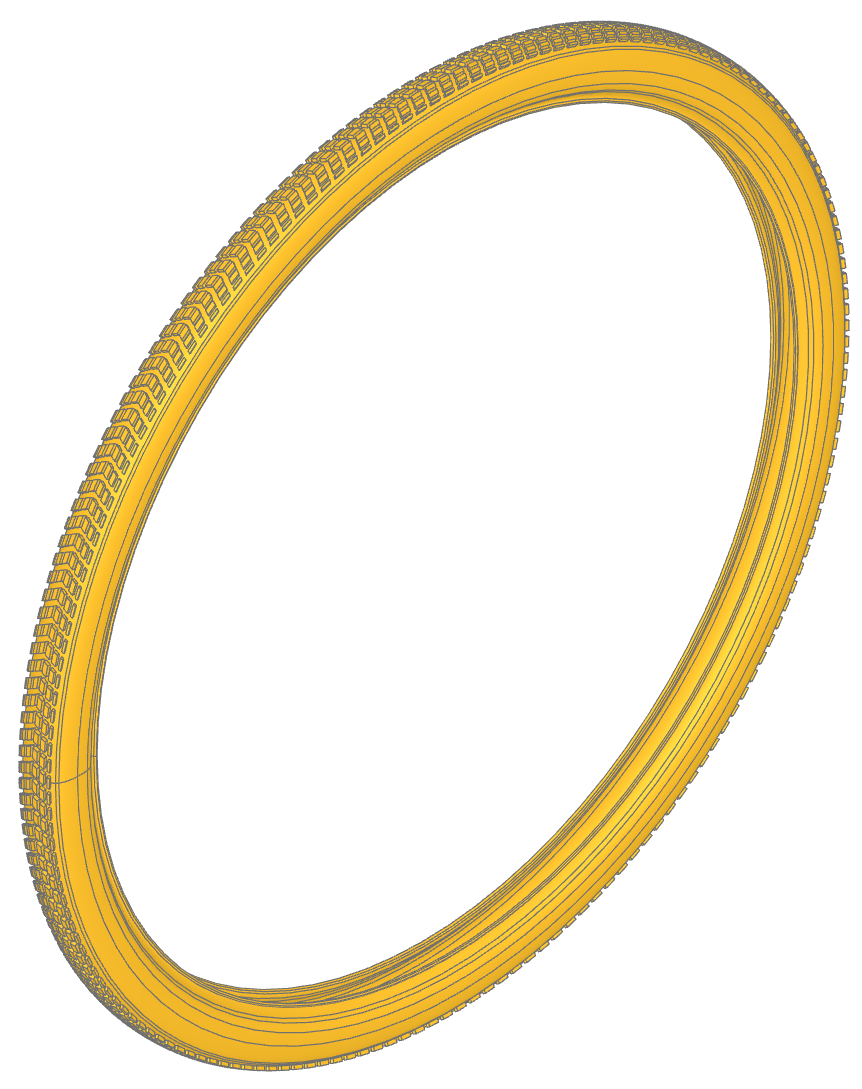

Bicycle Tire

This example demonstrates how to model a realistic bicycle tire with a patterned tread using build123d. The key concept showcased here is the use of wrap_faces to project 2D planar geometry onto a curved 3D surface.

🔨 Reference Implementation (Builder Mode)

import copy
from build123d import *
from ocp_vscode import show

wheel_diameter = 740 * MM

with BuildSketch() as tire_profile:
    with BuildLine() as build_profile:
        l00 = Bezier((0.0, 0.0), (7.05, 0.0), (12.18, 1.54), (15.13, 4.54))
        l01 = Bezier(l00 @ 1, (15.81, 5.22), (15.98, 5.44), (16.5, 6.23))
        l02 = Bezier(l01 @ 1, (18.45, 9.19), (19.61, 13.84), (19.94, 20.06))
        l03 = Bezier(l02 @ 1, (20.1, 23.24), (19.93, 27.48), (19.56, 29.45))
        l04 = Bezier(l03 @ 1, (19.13, 31.69), (18.23, 33.67), (16.91, 35.32))
        l05 = Bezier(l04 @ 1, (16.26, 36.12), (15.57, 36.77), (14.48, 37.58))
        l06 = Bezier(l05 @ 1, (12.77, 38.85), (11.51, 40.28), (10.76, 41.78))
        l07 = Bezier(l06 @ 1, (10.07, 43.16), (10.15, 43.81), (11.03, 43.98))
        l08 = Bezier(l07 @ 1, (11.82, 44.13), (12.15, 44.55), (12.08, 45.33))
        l09 = Bezier(l08 @ 1, (12.01, 46.07), (11.84, 46.43), (11.43, 46.69))
        l10 = Bezier(l09 @ 1, (10.98, 46.97), (10.07, 46.7), (9.47, 46.1))
        l11 = Bezier(l10 @ 1, (9.03, 45.65), (8.88, 45.31), (8.84, 44.65))
        l12 = Bezier(l11 @ 1, (8.78, 43.6), (9.11, 42.26), (9.72, 41.0))
        l13 = Bezier(l12 @ 1, (10.43, 39.54), (11.52, 38.2), (12.78, 37.22))
        l14 = Bezier(l13 @ 1, (15.36, 35.23), (16.58, 33.76), (17.45, 31.62))
        l15 = Bezier(l14 @ 1, (17.91, 30.49), (18.22, 29.27), (18.4, 27.8))
        l16 = Bezier(l15 @ 1, (18.53, 26.78), (18.52, 23.69), (18.37, 22.61))
        l17 = Bezier(l16 @ 1, (17.8, 18.23), (16.15, 14.7), (13.39, 11.94))
        l18 = Bezier(l17 @ 1, (11.89, 10.45), (10.19, 9.31), (8.09, 8.41))
        l19 = Bezier(l18 @ 1, (3.32, 6.35), (0.0, 6.64))
        mirror(about=Plane.YZ)
    make_face()

tire = revolve(Pos(Y=-wheel_diameter / 2) * tire_profile.face(), Axis.X)

with BuildSketch() as tread_pattern:
    with Locations((1, 1)):
        Trapezoid(15, 12, 60, 120, align=Align.MIN)
    with Locations((1, 8)):
        with GridLocations(0, 5, 1, 2):
            Rectangle(50, 2, mode=Mode.SUBTRACT)

# Define the surface and path that the tread pattern will be wrapped onto
half_road_surface = Face.revolve(Pos(Y=-wheel_diameter / 2) * l00, 360, Axis.X)
tread_path = half_road_surface.edges().sort_by(Axis.X)[0]

# Wrap the planar tread pattern onto the tire's outside surface
tread_faces = half_road_surface.wrap_faces(tread_pattern.faces(), tread_path)

# Mirror the faces to the other half of the tire
tread_faces.extend([mirror(t, Plane.YZ) for t in tread_faces])

# Thicken the tread to become solid nubs
# tread_prime = [Solid.thicken(f, 3 * MM) for f in tread_faces]
tread_prime = [thicken(f, 3 * MM) for f in tread_faces]

# Copy the nubs around the whole tire
tread = [Rot(X=r) * copy.copy(t) for t in tread_prime for r in range(0, 360, 2)]

show(tire, tread)

Former build123d Logo

This example creates the former build123d logo (new logo was created in the end of 2023).

Using text and lines to create the first build123d logo. The builder mode example also generates the SVG file logo.svg.

🔨 Reference Implementation (Builder Mode)

with BuildSketch() as logo_text:
    Text("123d", font_size=10, align=(Align.MIN, Align.MIN))
    font_height = logo_text.vertices().sort_by(Axis.Y)[-1].Y

with BuildSketch() as build_text:
    Text("build", font_size=5, align=(Align.CENTER, Align.CENTER))
    build_bb = bounding_box(build_text.sketch, mode=Mode.PRIVATE)
    build_vertices = build_bb.vertices().sort_by(Axis.X)
    build_width = build_vertices[-1].X - build_vertices[0].X

with BuildLine() as one:
    l1 = Line((font_height * 0.3, 0), (font_height * 0.3, font_height))
    TangentArc(l1 @ 1, (0, font_height * 0.7), tangent=(l1 % 1) * -1)

with BuildSketch() as two:
    with Locations((font_height * 0.35, 0)):
        Text("2", font_size=10, align=(Align.MIN, Align.MIN))

with BuildPart() as three_d:
    with BuildSketch(Plane((font_height * 1.1, 0))):
        Text("3d", font_size=10, align=(Align.MIN, Align.MIN))
    extrude(amount=font_height * 0.3)
    logo_width = three_d.vertices().sort_by(Axis.X)[-1].X

with BuildLine() as arrow_left:
    t1 = TangentArc((0, 0), (1, 0.75), tangent=(1, 0))
    mirror(t1, Plane.XZ)

ext_line_length = font_height * 0.5
dim_line_length = (logo_width - build_width - 2 * font_height * 0.05) / 2
with BuildLine() as extension_lines:
    l1 = Line((0, -font_height * 0.1), (0, -ext_line_length - font_height * 0.1))
    l2 = Line(
        (logo_width, -font_height * 0.1),
        (logo_width, -ext_line_length - font_height * 0.1),
    )
    with Locations(l1 @ 0.5):
        add(arrow_left.line)
    with Locations(l2 @ 0.5):
        add(arrow_left.line, rotation=180.0)
    Line(l1 @ 0.5, l1 @ 0.5 + Vector(dim_line_length, 0))
    Line(l2 @ 0.5, l2 @ 0.5 - Vector(dim_line_length, 0))

# Precisely center the build Faces
with BuildSketch() as build:
    with Locations(
        (l1 @ 0.5 + l2 @ 0.5) / 2
        - Vector((build_vertices[-1].X + build_vertices[0].X) / 2, 0)
    ):
        add(build_text.sketch)


if True:
    logo = Compound(
        children=[
            one.line,
            two.sketch,
            three_d.part,
            extension_lines.line,
            build.sketch,
        ]
    )

    # logo.export_step("logo.step")
    def add_svg_shape(svg: ExportSVG, shape: Shape, color: tuple[float, float, float]):
        global counter
        try:
            counter += 1
        except:
            counter = 1

        visible, _hidden = shape.project_to_viewport(
            (-5, 1, 10), viewport_up=(0, 1, 0), look_at=(0, 0, 0)
        )
        if color is not None:
            svg.add_layer(str(counter), fill_color=color, line_weight=1)
        else:
            svg.add_layer(str(counter), line_weight=1)
        svg.add_shape(visible, layer=str(counter))

    svg = ExportSVG(scale=20)
    add_svg_shape(svg, logo, None)
    # add_svg_shape(svg, Compound(children=[one.line, extension_lines.line]), None)
    # add_svg_shape(svg, Compound(children=[two.sketch, build.sketch]), (170, 204, 255))
    # add_svg_shape(svg, three_d.part, (85, 153, 255))
    svg.write("logo.svg")

show_object(one, name="one")
show_object(two, name="two")
show_object(three_d, name="three_d")
show_object(extension_lines, name="extension_lines")
show_object(build, name="build")

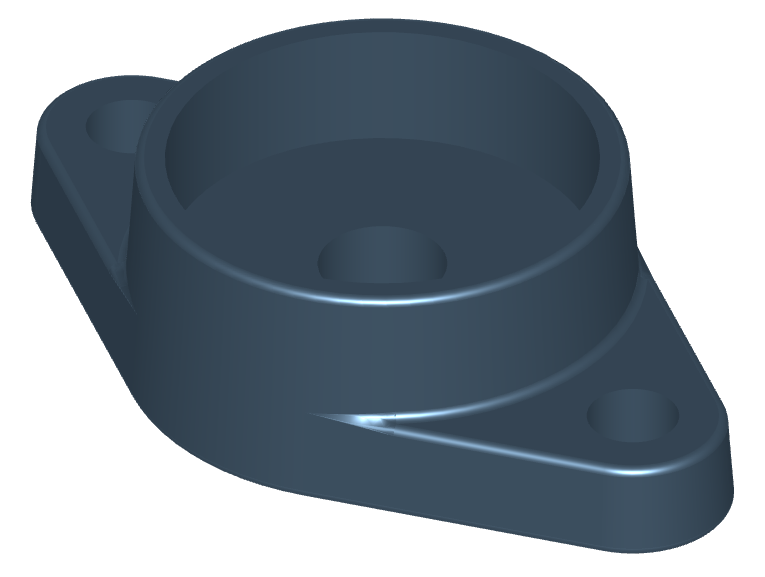

Cast Bearing Unit

This example demonstrates the creation of a castable flanged bearing housing using the draft operation to add appropriate draft angles for mold release.

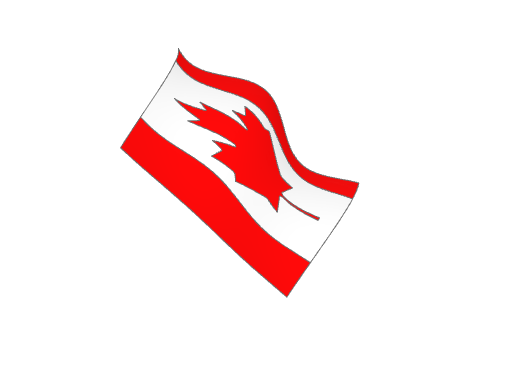

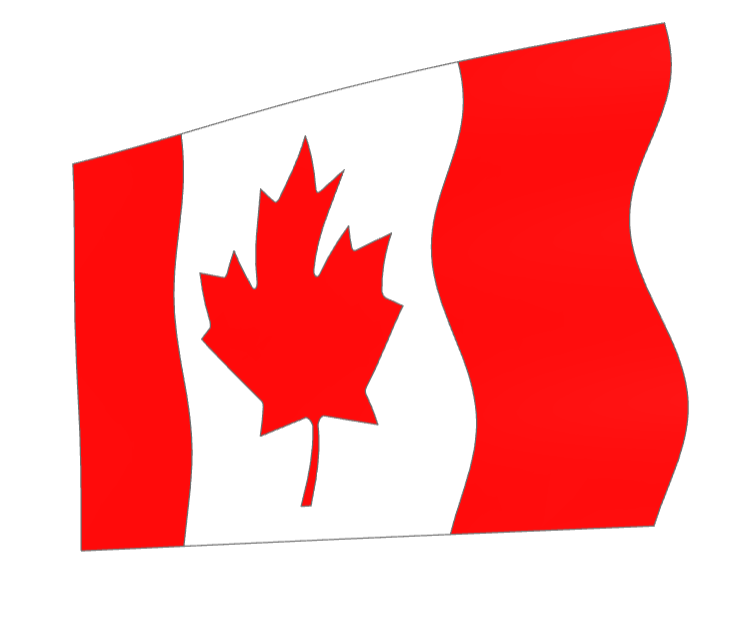

Canadian Flag Blowing in The Wind

A Canadian Flag blowing in the wind created by projecting planar faces onto a non-planar face (the_wind).

This example also demonstrates building complex lines that snap to existing features.

🔨 Reference Implementation (Builder Mode)

def surface(amplitude, u, v):
    """Calculate the surface displacement of the flag at a given position"""
    return v * amplitude / 20 * cos(3.5 * pi * u) + amplitude / 10 * v * sin(
        1.1 * pi * v
    )


# Note that the surface to project on must be a little larger than the faces
# being projected onto it to create valid projected faces
the_wind = Face.make_surface_from_array_of_points(
    [
        [
            Vector(
                width * (v * 1.1 / 40 - 0.05),
                height * (u * 1.2 / 40 - 0.1),
                height * surface(wave_amplitude, u / 40, v / 40) / 2,
            )
            for u in range(41)
        ]
        for v in range(41)
    ]
)
with BuildSketch(Plane.XY.offset(10)) as west_field_builder:
    Rectangle(width / 4, height, align=(Align.MIN, Align.MIN))
west_field_planar = west_field_builder.sketch.faces()[0]
east_field_planar = west_field_planar.mirror(Plane.YZ.offset(width / 2))

with BuildSketch(Plane((width / 2, 0, 10))) as center_field_builder:
    Rectangle(width / 2, height, align=(Align.CENTER, Align.MIN))
    with BuildSketch(
        Plane((width / 2, 0, 10)), mode=Mode.SUBTRACT
    ) as maple_leaf_builder:
        with BuildLine() as outline:
            l1 = Polyline((0.0000, 0.0771), (0.0187, 0.0771), (0.0094, 0.2569))
            l2 = Polyline((0.0325, 0.2773), (0.2115, 0.2458), (0.1873, 0.3125))
            RadiusArc(l1 @ 1, l2 @ 0, 0.0271)
            l3 = Polyline((0.1915, 0.3277), (0.3875, 0.4865), (0.3433, 0.5071))
            TangentArc(l2 @ 1, l3 @ 0, tangent=l2 % 1)
            l4 = Polyline((0.3362, 0.5235), (0.375, 0.6427), (0.2621, 0.6188))
            SagittaArc(l3 @ 1, l4 @ 0, 0.003)
            l5 = Polyline((0.2469, 0.6267), (0.225, 0.6781), (0.1369, 0.5835))
            ThreePointArc(
                l4 @ 1, (l4 @ 1 + l5 @ 0) * 0.5 + Vector(-0.002, -0.002), l5 @ 0
            )
            l6 = Polyline((0.1138, 0.5954), (0.1562, 0.8146), (0.0881, 0.7752))
            Spline(
                l5 @ 1,
                l6 @ 0,
                tangents=(l5 % 1, l6 % 0),
                tangent_scalars=(2, 2),
            )
            l7 = Line((0.0692, 0.7808), (0.0000, 0.9167))
            TangentArc(l6 @ 1, l7 @ 0, tangent=l6 % 1)
            mirror(outline.edges(), Plane.YZ)
        make_face()
        scale(by=height)
maple_leaf_planar = maple_leaf_builder.sketch.faces()[0]
center_field_planar = center_field_builder.sketch.faces()[0]

west_field = west_field_planar.project_to_shape(the_wind, (0, 0, -1))[0]
west_field.color = Color("red")
east_field = east_field_planar.project_to_shape(the_wind, (0, 0, -1))[0]
east_field.color = Color("red")
center_field = center_field_planar.project_to_shape(the_wind, (0, 0, -1))[0]
center_field.color = Color("white")
maple_leaf = maple_leaf_planar.project_to_shape(the_wind, (0, 0, -1))[0]
maple_leaf.color = Color("red")

canadian_flag = Compound(children=[west_field, east_field, center_field, maple_leaf])
show(Rot(90, 0, 0) * canadian_flag)

✏️ Reference Implementation (Algebra Mode)

def surface(amplitude, u, v):
    """Calculate the surface displacement of the flag at a given position"""
    return v * amplitude / 20 * cos(3.5 * pi * u) + amplitude / 10 * v * sin(
        1.1 * pi * v
    )


# Note that the surface to project on must be a little larger than the faces
# being projected onto it to create valid projected faces
the_wind = Face.make_surface_from_array_of_points(
    [
        [
            Vector(
                width * (v * 1.1 / 40 - 0.05),
                height * (u * 1.2 / 40 - 0.1),
                height * surface(wave_amplitude, u / 40, v / 40) / 2,
            )
            for u in range(41)
        ]
        for v in range(41)
    ]
)

field_planar = Plane.XY.offset(10) * Rectangle(width / 4, height, align=Align.MIN)
west_field_planar = field_planar.faces()[0]
east_field_planar = mirror(west_field_planar, Plane.YZ.offset(width / 2))

l1 = Polyline((0.0000, 0.0771), (0.0187, 0.0771), (0.0094, 0.2569))
l2 = Polyline((0.0325, 0.2773), (0.2115, 0.2458), (0.1873, 0.3125))
r1 = RadiusArc(l1 @ 1, l2 @ 0, 0.0271)
l3 = Polyline((0.1915, 0.3277), (0.3875, 0.4865), (0.3433, 0.5071))
r2 = TangentArc(l2 @ 1, l3 @ 0, tangent=l2 % 1)
l4 = Polyline((0.3362, 0.5235), (0.375, 0.6427), (0.2621, 0.6188))
r3 = SagittaArc(l3 @ 1, l4 @ 0, 0.003)
l5 = Polyline((0.2469, 0.6267), (0.225, 0.6781), (0.1369, 0.5835))
r4 = ThreePointArc(l4 @ 1, (l4 @ 1 + l5 @ 0) * 0.5 + Vector(-0.002, -0.002), l5 @ 0)
l6 = Polyline((0.1138, 0.5954), (0.1562, 0.8146), (0.0881, 0.7752))
s = Spline(
    l5 @ 1,
    l6 @ 0,
    tangents=(l5 % 1, l6 % 0),
    tangent_scalars=(2, 2),
)
l7 = Line((0.0692, 0.7808), (0.0000, 0.9167))
r5 = TangentArc(l6 @ 1, l7 @ 0, tangent=l6 % 1)

outline = l1 + [l2, r1, l3, r2, l4, r3, l5, r4, l6, s, l7, r5]
outline += mirror(outline, Plane.YZ)

maple_leaf_planar = make_face(outline)

center_field_planar = (
    Rectangle(1, 1, align=(Align.CENTER, Align.MIN)) - maple_leaf_planar
)


def scale_move(obj):
    return Plane((width / 2, 0, 10)) * scale(obj, height)


def project(obj):
    return obj.faces()[0].project_to_shape(the_wind, (0, 0, -1))[0]


maple_leaf_planar = scale_move(maple_leaf_planar)
center_field_planar = scale_move(center_field_planar)

west_field = project(west_field_planar)
west_field.color = Color("red")
east_field = project(east_field_planar)
east_field.color = Color("red")
center_field = project(center_field_planar)
center_field.color = Color("white")
maple_leaf = project(maple_leaf_planar)
maple_leaf.color = Color("red")

canadian_flag = Compound(children=[west_field, east_field, center_field, maple_leaf])
show(Rot(90, 0, 0) * canadian_flag)

Circuit Board With Holes

This example demonstrates placing holes around a part.

Builder mode uses Locations context to place the positions.
Algebra mode uses product and range to calculate the positions.

Clock Face

The Python code utilizes the build123d library to create a 3D model of a clock face. It defines a minute indicator with arcs and lines, applying fillets, and then integrates it into the clock face sketch. The clock face includes a circular outline, hour labels, and slots at specified positions. The resulting 3D model represents a detailed and visually appealing clock design.

PolarLocations are used to position features on the clock face.

Fast Grid Holes

This example demonstrates an efficient approach to creating a large number of holes (625 in this case) in a planar part using build123d.

Instead of modeling and subtracting 3D solids for each hole—which is computationally expensive—this method constructs a 2D Face from an outer perimeter wire and a list of hole wires. The entire face is then extruded in a single operation to form the final 3D object. This approach significantly reduces modeling time and complexity.

The hexagonal hole pattern is generated using HexLocations, and each location is populated with a hexagonal wire. These wires are passed directly to the Face constructor as holes. On a typical Linux laptop, this script completes in approximately 1.02 seconds, compared to substantially longer runtimes for boolean subtraction of individual holes in 3D.

Handle

This example demonstrates multisection sweep creating a drawer handle.

Heat Exchanger

This example creates a model of a parametric heat exchanger core. The positions of the tubes are defined with HexLocations and further limited to fit within the circular end caps. The ends of the tubes are filleted to the end plates to simulate welding.

Key Cap

This example demonstrates the design of a Cherry MX key cap by using extrude with a taper and extrude until next.

Maker Coin

This example creates the maker coin as defined by Angus on the Maker’s Muse YouTube channel. There are two key features:

the use of DoubleTangentArc to create a smooth transition from the central dish to the outside arc, and
embossing the text into the top of the coin not just as a simple extrude but from a projection which results in text with even depth.

Multi-Sketch Loft

This example demonstrates lofting a set of sketches, selecting the top and bottom by type, and shelling.

Peg Board Hook

This script creates a a J-shaped pegboard hook. These hooks are commonly used for organizing tools in garages, workshops, or other spaces where tools and equipment need to be stored neatly and accessibly. The hook is created by defining a complex path and then sweeping it to define the hook. The sides of the hook are flattened to aid 3D printing.

Platonic Solids

This example creates a custom Part object PlatonicSolid.

Platonic solids are five three-dimensional shapes that are highly symmetrical, known since antiquity and named after the ancient Greek philosopher Plato. These solids are unique because their faces are congruent regular polygons, with the same number of faces meeting at each vertex. The five Platonic solids are the tetrahedron (4 triangular faces), cube (6 square faces), octahedron (8 triangular faces), dodecahedron (12 pentagonal faces), and icosahedron (20 triangular faces). Each solid represents a unique way in which identical polygons can be arranged in three dimensions to form a convex polyhedron, embodying ideals of symmetry and balance.

✏️ Reference Implementation (Algebra Mode)

from build123d import *
from math import sqrt
from typing import Union, Literal
from scipy.spatial import ConvexHull

from ocp_vscode import show

PHI = (1 + sqrt(5)) / 2  # The Golden Ratio


class PlatonicSolid(BasePartObject):
    """Part Object: Platonic Solid

    Create one of the five convex Platonic solids.

    Args:
        face_count (Literal[4,6,8,12,20]): number of faces
        diameter (float): double distance to vertices, i.e. maximum size
        rotation (RotationLike, optional): angles to rotate about axes. Defaults to (0, 0, 0).
        align (Union[None, Align, tuple[Align, Align, Align]], optional): align min, center,
            or max of object. Defaults to None.
        mode (Mode, optional): combine mode. Defaults to Mode.ADD.
    """

    tetrahedron_vertices = [(1, 1, 1), (1, -1, -1), (-1, 1, -1), (-1, -1, 1)]

    cube_vertices = [(i, j, k) for i in [-1, 1] for j in [-1, 1] for k in [-1, 1]]

    octahedron_vertices = (
        [(i, 0, 0) for i in [-1, 1]]
        + [(0, i, 0) for i in [-1, 1]]
        + [(0, 0, i) for i in [-1, 1]]
    )

    dodecahedron_vertices = (
        [(i, j, k) for i in [-1, 1] for j in [-1, 1] for k in [-1, 1]]
        + [(0, i / PHI, j * PHI) for i in [-1, 1] for j in [-1, 1]]
        + [(i / PHI, j * PHI, 0) for i in [-1, 1] for j in [-1, 1]]
        + [(i * PHI, 0, j / PHI) for i in [-1, 1] for j in [-1, 1]]
    )

    icosahedron_vertices = (
        [(0, i, j * PHI) for i in [-1, 1] for j in [-1, 1]]
        + [(i, j * PHI, 0) for i in [-1, 1] for j in [-1, 1]]
        + [(i * PHI, 0, j) for i in [-1, 1] for j in [-1, 1]]
    )

    vertices_lookup = {
        4: tetrahedron_vertices,
        6: cube_vertices,
        8: octahedron_vertices,
        12: dodecahedron_vertices,
        20: icosahedron_vertices,
    }
    _applies_to = [BuildPart._tag]

    def __init__(
        self,
        face_count: Literal[4, 6, 8, 12, 20],
        diameter: float = 1.0,
        rotation: RotationLike = (0, 0, 0),
        align: Union[None, Align, tuple[Align, Align, Align]] = None,
        mode: Mode = Mode.ADD,
    ):
        try:
            platonic_vertices = PlatonicSolid.vertices_lookup[face_count]
        except KeyError:
            raise ValueError(
                f"face_count must be one of 4, 6, 8, 12, or 20 not {face_count}"
            )

        # Create a convex hull from the vertices
        hull = ConvexHull(platonic_vertices).simplices.tolist()

        # Create faces from the vertex indices
        platonic_faces = []
        for face_vertex_indices in hull:
            corner_vertices = [platonic_vertices[i] for i in face_vertex_indices]
            platonic_faces.append(Face(Wire.make_polygon(corner_vertices)))

        # Create the solid from the Faces
        platonic_solid = Solid(Shell(platonic_faces)).clean()

        # By definition, all vertices are the same distance from the origin so
        # scale proportionally to this distance
        platonic_solid = platonic_solid.scale(
            (diameter / 2) / Vector(platonic_solid.vertices()[0]).length
        )

        super().__init__(part=platonic_solid, rotation=rotation, align=align, mode=mode)


solids = [
    Rot(0, 0, 72 * i) * Pos(1, 0, 0) * PlatonicSolid(faces)
    for i, faces in enumerate([4, 6, 8, 12, 20])
]
show(solids)

Playing Cards

This example creates a customs Sketch objects: Club, Spade, Heart, Diamond, and PlayingCard in addition to a two part playing card box which has suit cutouts in the lid. The four suits are created with Bézier curves that were imported as code from an SVG file and modified to the code found here.

🔨 Reference Implementation (Builder Mode)

from typing import Literal
from build123d import *
from ocp_vscode import show_object


# [Club]
class Club(BaseSketchObject):
    def __init__(
        self,
        height: float,
        rotation: float = 0,
        align: tuple[Align, Align] = (Align.CENTER, Align.CENTER),
        mode: Mode = Mode.ADD,
    ):
        with BuildSketch() as club:
            with BuildLine():
                l0 = Line((0, -188), (76, -188))
                b0 = Bezier(l0 @ 1, (61, -185), (33, -173), (17, -81))
                b1 = Bezier(b0 @ 1, (49, -128), (146, -145), (167, -67))
                b2 = Bezier(b1 @ 1, (187, 9), (94, 52), (32, 18))
                b3 = Bezier(b2 @ 1, (92, 57), (113, 188), (0, 188))
                mirror(about=Plane.YZ)
            make_face()
            scale(by=height / club.sketch.bounding_box().size.Y)
        super().__init__(obj=club.sketch, rotation=rotation, align=align, mode=mode)


# [Club]


class Spade(BaseSketchObject):
    def __init__(
        self,
        height: float,
        rotation: float = 0,
        align: tuple[Align, Align] = (Align.CENTER, Align.CENTER),
        mode: Mode = Mode.ADD,
    ):
        with BuildSketch() as spade:
            with BuildLine():
                b0 = Bezier((0, 198), (6, 190), (41, 127), (112, 61))
                b1 = Bezier(b0 @ 1, (242, -72), (114, -168), (11, -105))
                b2 = Bezier(b1 @ 1, (31, -174), (42, -179), (53, -198))
                l0 = Line(b2 @ 1, (0, -198))
                mirror(about=Plane.YZ)
            make_face()
            scale(by=height / spade.sketch.bounding_box().size.Y)
        super().__init__(obj=spade.sketch, rotation=rotation, align=align, mode=mode)


class Heart(BaseSketchObject):
    def __init__(
        self,
        height: float,
        rotation: float = 0,
        align: tuple[Align, Align] = (Align.CENTER, Align.CENTER),
        mode: Mode = Mode.ADD,
    ):
        with BuildSketch() as heart:
            with BuildLine():
                b1 = Bezier((0, 146), (20, 169), (67, 198), (97, 198))
                b2 = Bezier(b1 @ 1, (125, 198), (151, 186), (168, 167))
                b3 = Bezier(b2 @ 1, (197, 133), (194, 88), (158, 31))
                b4 = Bezier(b3 @ 1, (126, -13), (94, -48), (62, -95))
                b5 = Bezier(b4 @ 1, (40, -128), (0, -198))
                mirror(about=Plane.YZ)
            make_face()
            scale(by=height / heart.sketch.bounding_box().size.Y)
        super().__init__(obj=heart.sketch, rotation=rotation, align=align, mode=mode)


class Diamond(BaseSketchObject):
    def __init__(
        self,
        height: float,
        rotation: float = 0,
        align: tuple[Align, Align] = (Align.CENTER, Align.CENTER),
        mode: Mode = Mode.ADD,
    ):
        with BuildSketch() as diamond:
            with BuildLine():
                Bezier((135, 0), (94, 69), (47, 134), (0, 198))
                mirror(about=Plane.XZ)
                mirror(about=Plane.YZ)
            make_face()
            scale(by=height / diamond.sketch.bounding_box().size.Y)
        super().__init__(obj=diamond.sketch, rotation=rotation, align=align, mode=mode)


card_width = 2.5 * IN
card_length = 3.5 * IN
deck = 0.5 * IN
wall = 4 * MM
gap = 0.5 * MM

with BuildPart() as box_builder:
    with BuildSketch() as plan:
        Rectangle(card_width + 2 * wall, card_length + 2 * wall)
        fillet(plan.vertices(), radius=card_width / 15)
    extrude(amount=wall / 2)
    with BuildSketch(box_builder.faces().sort_by(Axis.Z)[-1]) as walls:
        add(plan.sketch)
        offset(plan.sketch, amount=-wall, mode=Mode.SUBTRACT)
    extrude(amount=deck / 2)
    with BuildSketch(box_builder.faces().sort_by(Axis.Z)[-1]) as inset_walls:
        offset(plan.sketch, amount=-(wall + gap) / 2, mode=Mode.ADD)
        offset(plan.sketch, amount=-wall, mode=Mode.SUBTRACT)
    extrude(amount=deck / 2)

with BuildPart() as lid_builder:
    with BuildSketch() as outset_walls:
        add(plan.sketch)
        offset(plan.sketch, amount=-(wall - gap) / 2, mode=Mode.SUBTRACT)
    extrude(amount=deck / 2)
    with BuildSketch(lid_builder.faces().sort_by(Axis.Z)[-1]) as top:
        add(plan.sketch)
    extrude(amount=wall / 2)
    with BuildSketch(lid_builder.faces().sort_by(Axis.Z)[-1]):
        holes = GridLocations(
            3 * card_width / 5, 3 * card_length / 5, 2, 2
        ).local_locations
        for i, hole in enumerate(holes):
            with Locations(hole) as hole_loc:
                if i == 0:
                    Heart(card_length / 5)
                elif i == 1:
                    Diamond(card_length / 5)
                elif i == 2:
                    Spade(card_length / 5)
                elif i == 3:
                    Club(card_length / 5)
    extrude(amount=-wall, mode=Mode.SUBTRACT)

box = Compound(
    [box_builder.part, lid_builder.part.moved(Location((0, 0, (wall + deck) / 2)))]
)
visible, hidden = box.project_to_viewport((70, -50, 120))
max_dimension = max(*Compound(children=visible + hidden).bounding_box().size)
exporter = ExportSVG(scale=100 / max_dimension)
exporter.add_layer("Visible")
exporter.add_layer("Hidden", line_color=(99, 99, 99), line_type=LineType.ISO_DOT)
exporter.add_shape(visible, layer="Visible")
exporter.add_shape(hidden, layer="Hidden")
# exporter.write(f"assets/card_box.svg")


class PlayingCard(BaseSketchObject):
    """PlayingCard

    A standard playing card modelled as a Face.

    Args:
        rank (Literal['A', '2' .. '10', 'J', 'Q', 'K']): card rank
        suit (Literal['Clubs', 'Spades', 'Hearts', 'Diamonds']): card suit
    """

    width = 2.5 * IN
    height = 3.5 * IN
    suits = {"Clubs": Club, "Spades": Spade, "Hearts": Heart, "Diamonds": Diamond}
    ranks = ["A", "2", "3", "4", "5", "6", "7", "8", "9", "10", "J", "Q", "K"]

    def __init__(
        self,
        rank: Literal["A", "2", "3", "4", "5", "6", "7", "8", "9", "10", "J", "Q", "K"],
        suit: Literal["Clubs", "Spades", "Hearts", "Diamonds"],
        rotation: float = 0,
        align: tuple[Align, Align] = (Align.CENTER, Align.CENTER),
        mode: Mode = Mode.ADD,
    ):
        with BuildSketch() as playing_card:
            Rectangle(
                PlayingCard.width, PlayingCard.height, align=(Align.MIN, Align.MIN)
            )
            fillet(playing_card.vertices(), radius=PlayingCard.width / 15)
            with Locations(
                (
                    PlayingCard.width / 7,
                    8 * PlayingCard.height / 9,
                )
            ):
                Text(
                    txt=rank,
                    font_size=PlayingCard.width / 7,
                    mode=Mode.SUBTRACT,
                )
            with Locations(
                (
                    PlayingCard.width / 7,
                    7 * PlayingCard.height / 9,
                )
            ):
                PlayingCard.suits[suit](
                    height=PlayingCard.width / 12, mode=Mode.SUBTRACT
                )
            with Locations(
                (
                    6 * PlayingCard.width / 7,
                    1 * PlayingCard.height / 9,
                )
            ):
                Text(
                    txt=rank,
                    font_size=PlayingCard.width / 7,
                    rotation=180,
                    mode=Mode.SUBTRACT,
                )
            with Locations(
                (
                    6 * PlayingCard.width / 7,
                    2 * PlayingCard.height / 9,
                )
            ):
                PlayingCard.suits[suit](
                    height=PlayingCard.width / 12, rotation=180, mode=Mode.SUBTRACT
                )
            rank_int = PlayingCard.ranks.index(rank) + 1
            rank_int = rank_int if rank_int < 10 else 1
            with Locations((PlayingCard.width / 2, PlayingCard.height / 2)):
                center_radius = 0 if rank_int == 1 else PlayingCard.width / 3.5
                suit_rotation = 0 if rank_int == 1 else -90
                suit_height = (
                    0.00159 * rank_int**2 - 0.0380 * rank_int + 0.37
                ) * PlayingCard.width
                with PolarLocations(
                    radius=center_radius,
                    count=rank_int,
                    start_angle=90 if rank_int > 1 else 0,
                ):
                    PlayingCard.suits[suit](
                        height=suit_height,
                        rotation=suit_rotation,
                        mode=Mode.SUBTRACT,
                    )
        super().__init__(
            obj=playing_card.sketch, rotation=rotation, align=align, mode=mode
        )


ace_spades = PlayingCard(rank="A", suit="Spades", align=Align.MIN)
ace_spades.color = Color("white")
king_hearts = PlayingCard(rank="K", suit="Hearts", align=Align.MIN)
king_hearts.color = Color("white")
queen_clubs = PlayingCard(rank="Q", suit="Clubs", align=Align.MIN)
queen_clubs.color = Color("white")
jack_diamonds = PlayingCard(rank="J", suit="Diamonds", align=Align.MIN)
jack_diamonds.color = Color("white")
ten_spades = PlayingCard(rank="10", suit="Spades", align=Align.MIN)
ten_spades.color = Color("white")

hand = Compound(
    children=[
        Rot(0, 0, -20) * Pos(0, 0, 0) * ace_spades,
        Rot(0, 0, -10) * Pos(0, 0, -1) * king_hearts,
        Rot(0, 0, 0) * Pos(0, 0, -2) * queen_clubs,
        Rot(0, 0, 10) * Pos(0, 0, -3) * jack_diamonds,
        Rot(0, 0, 20) * Pos(0, 0, -4) * ten_spades,
    ]
)

show_object(Pos(-20, 40) * hand)
show_object(box_builder.part, "box_builder")
show_object(
    Pos(0, 0, (wall + deck) / 2) * lid_builder.part,
    "lid_builder",
    options={"alpha": 0.7},
)

Stud Wall

This example demonstrates creating custom Part objects and putting them into assemblies. The custom object is a Stud used in the building industry while the assembly is a StudWall created from copies of Stud objects for efficiency. Both the Stud and StudWall objects use RigidJoints to define snap points which are used to position all of objects.

✏️ Reference Implementation (Algebra Mode)

class Stud(BasePartObject):
    """Part Object: Stud

    Create a dimensional framing stud.

    Args:
        length (float): stud size
        width (float): stud size
        thickness (float): stud size
        rotation (RotationLike, optional): angles to rotate about axes. Defaults to (0, 0, 0).
        align (Union[Align, tuple[Align, Align, Align]], optional): align min, center,
            or max of object. Defaults to (Align.CENTER, Align.CENTER, Align.MIN).
        mode (Mode, optional): combine mode. Defaults to Mode.ADD.
    """

    _applies_to = [BuildPart._tag]

    def __init__(
        self,
        length: float = 8 * FT,
        width: float = 3.5 * IN,
        thickness: float = 1.5 * IN,
        rotation: RotationLike = (0, 0, 0),
        align: Union[None, Align, tuple[Align, Align, Align]] = (
            Align.CENTER,
            Align.CENTER,
            Align.MIN,
        ),
        mode: Mode = Mode.ADD,
    ):
        self.length = length
        self.width = width
        self.thickness = thickness

        # Create the basic shape
        with BuildPart() as stud:
            with BuildSketch():
                RectangleRounded(thickness, width, 0.25 * IN)
            extrude(amount=length)

        # Create a Part object with appropriate alignment and rotation
        super().__init__(part=stud.part, rotation=rotation, align=align, mode=mode)

        # Add joints to the ends of the stud
        RigidJoint("end0", self, Location())
        RigidJoint("end1", self, Location((0, 0, length), (1, 0, 0), 180))


class StudWall(Compound):
    """StudWall

    A simple stud wall assembly with top and sole plates.

    Args:
        length (float): wall length
        depth (float, optional): stud width. Defaults to 3.5*IN.
        height (float, optional): wall height. Defaults to 8*FT.
        stud_spacing (float, optional): center-to-center. Defaults to 16*IN.
        stud_thickness (float, optional): Defaults to 1.5*IN.
    """

    def __init__(
        self,
        length: float,
        depth: float = 3.5 * IN,
        height: float = 8 * FT,
        stud_spacing: float = 16 * IN,
        stud_thickness: float = 1.5 * IN,
    ):
        # Create the object that will be used for top and sole plates
        plate = Stud(
            length,
            depth,
            rotation=(0, -90, 0),
            align=(Align.MIN, Align.CENTER, Align.MAX),
        )
        # Define where studs will go on the plates
        stud_locations = Pos(stud_thickness / 2, 0, stud_thickness) * GridLocations(
            stud_spacing, 0, int(length / stud_spacing) + 1, 1, align=Align.MIN
        )
        stud_locations.append(Pos(length - stud_thickness / 2, 0, stud_thickness))

        # Create a single stud that will be copied for efficiency
        stud = Stud(height - 2 * stud_thickness, depth, stud_thickness)

        # For efficiency studs in the walls are copies with their own position
        studs = []
        for i, loc in enumerate(stud_locations):
            stud_joint = RigidJoint(f"stud{i}", plate, loc)
            stud_copy = copy.copy(stud)
            stud_joint.connect_to(stud_copy.joints["end0"])
            studs.append(stud_copy)
        top_plate = copy.copy(plate)
        sole_plate = copy.copy(plate)

        # Position the top plate relative to the top of the first stud
        studs[0].joints["end1"].connect_to(top_plate.joints["stud0"])

        # Build the assembly of parts
        super().__init__(children=[top_plate, sole_plate] + studs)

        # Add joints to the wall
        RigidJoint("inside0", self, Location((depth / 2, depth / 2, 0), (0, 0, 1), 90))
        RigidJoint("end0", self, Location())


x_wall = StudWall(13 * FT)
y_wall = StudWall(9 * FT)
x_wall.joints["inside0"].connect_to(y_wall.joints["end0"])

show(x_wall, y_wall, render_joints=False)

Tea Cup

This example demonstrates the creation a tea cup, which serves as an example of constructing complex, non-flat geometrical shapes programmatically.

The tea cup model involves several CAD techniques, such as:

Revolve Operations: There is 1 occurrence of a revolve operation. This is used to create the main body of the tea cup by revolving a profile around an axis, a common technique for generating symmetrical objects like cups.
Sweep Operations: There are 2 occurrences of sweep operations. The handle are created by sweeping a profile along a path to generate non-planar surfaces.
Offset/Shell Operations: the bowl of the cup is hollowed out with the offset operation leaving the top open.
Fillet Operations: There is 1 occurrence of a fillet operation which is used to round the edges for aesthetic improvement and to mimic real-world objects more closely.

Toy Truck

🔨 Reference Implementation (Builder Mode)

from build123d import *
from ocp_vscode import show

# Toy Truck Blue
truck_color = Color(0x4683CE)

# Create the main truck body — from bumper to bed, excluding the cab
with BuildPart() as body:
    # The body has two axes of symmetry, so we start with a centered sketch.
    # The default workplane is Plane.XY.
    with BuildSketch() as body_skt:
        Rectangle(20, 35)
        # Fillet all the corners of the sketch.
        # Alternatively, you could use RectangleRounded.
        fillet(body_skt.vertices(), 1)

    # Extrude the body shape upward
    extrude(amount=10, taper=4)
    # Reuse the sketch by accessing it explicitly
    extrude(body_skt.sketch, amount=8, taper=2)

    # Create symmetric fenders on Plane.YZ
    with BuildSketch(Plane.YZ) as fender:
        # The trapezoid has asymmetric angles (80°, 88°)
        Trapezoid(18, 6, 80, 88, align=Align.MIN)
        # Fillet top edge vertices (Y-direction highest group)
        fillet(fender.vertices().group_by(Axis.Y)[-1], 1.5)

    # Extrude the fender in both directions
    extrude(amount=10.5, both=True)

    # Create wheel wells with a shifted sketch on Plane.YZ
    with BuildSketch(Plane.YZ.shift_origin((0, 3.5, 0))) as wheel_well:
        Trapezoid(12, 4, 70, 85, align=Align.MIN)
        fillet(wheel_well.vertices().group_by(Axis.Y)[-1], 2)

    # Subtract the wheel well geometry
    extrude(amount=10.5, both=True, mode=Mode.SUBTRACT)

    # Fillet the top edges of the body
    fillet(body.edges().group_by(Axis.Z)[-1], 1)

    # Isolate a set of body edges and preview before filleting
    body_edges = body.edges().group_by(Axis.Z)[-6]
    fillet(body_edges, 0.1)

    # Combine edge groups from both sides of the fender and fillet them
    fender_edges = body.edges().group_by(Axis.X)[0] + body.edges().group_by(Axis.X)[-1]
    fender_edges = fender_edges.group_by(Axis.Z)[1:]
    fillet(fender_edges, 0.4)

    # Create a sketch on the front of the truck for the grill
    with BuildSketch(
        Plane.XZ.offset(-body.vertices().sort_by(Axis.Y)[-1].Y - 0.5)
    ) as grill:
        Rectangle(16, 8.5, align=(Align.CENTER, Align.MIN))
        fillet(grill.vertices().group_by(Axis.Y)[-1], 1)

        # Add headlights (subtractive circles)
        with Locations((0, 6.5)):
            with GridLocations(12, 0, 2, 1):
                Circle(1, mode=Mode.SUBTRACT)

        # Add air vents (subtractive slots)
        with Locations((0, 3)):
            with GridLocations(0, 0.8, 1, 4):
                SlotOverall(10, 0.5, mode=Mode.SUBTRACT)

    # Extrude the grill forward
    extrude(amount=2)

    # Fillet only the outer grill edges (exclude headlight/vent cuts)
    grill_perimeter = body.faces().sort_by(Axis.Y)[-1].outer_wire()
    fillet(grill_perimeter.edges(), 0.2)

    # Create the bumper as a separate part inside the body
    with BuildPart() as bumper:
        # Find the midpoint of a front edge and shift slightly to position the bumper
        front_cnt = body.edges().group_by(Axis.Z)[0].sort_by(Axis.Y)[-1] @ 0.5 - (0, 3)

        with BuildSketch() as bumper_plan:
            # Use BuildLine to draw an elliptical arc and offset
            with BuildLine():
                EllipticalCenterArc(front_cnt, 20, 4, start_angle=60, end_angle=120)
                offset(amount=1)
            make_face()

        # Extrude the bumper symmetrically
        extrude(amount=1, both=True)
        fillet(bumper.edges(), 0.25)

    # Define a joint on top of the body to connect the cab later
    RigidJoint("body_top", joint_location=Location((0, -7.5, 10)))
    body.part.color = truck_color

# Create the cab as an independent part to mount on the body
with BuildPart() as cab:
    with BuildSketch() as cab_plan:
        RectangleRounded(16, 16, 1)
        # Split the sketch to work on one symmetric half
        split(bisect_by=Plane.YZ)

    # Extrude the cab forward and upward at an angle
    extrude(amount=7, dir=(0, 0.15, 1))
    fillet(cab.edges().group_by(Axis.Z)[-1].group_by(Axis.X)[1:], 1)

    # Rear window
    with BuildSketch(Plane.XZ.shift_origin((0, 0, 3))) as rear_window:
        RectangleRounded(8, 4, 0.75)
    extrude(amount=10, mode=Mode.SUBTRACT)

    # Front window
    with BuildSketch(Plane.XZ) as front_window:
        RectangleRounded(15.2, 11, 0.75)
    extrude(amount=-10, mode=Mode.SUBTRACT)

    # Side windows
    with BuildSketch(Plane.YZ) as side_window:
        with Locations((3.5, 0)):
            with GridLocations(10, 0, 2, 1):
                Trapezoid(9, 5.5, 80, 100, align=(Align.CENTER, Align.MIN))
                fillet(side_window.vertices().group_by(Axis.Y)[-1], 0.5)
    extrude(amount=12, both=True, mode=Mode.SUBTRACT)

    # Mirror to complete the cab
    mirror(about=Plane.YZ)

    # Define joint on cab base
    RigidJoint("cab_base", joint_location=Location((0, 0, 0)))
    cab.part.color = truck_color

# Attach the cab to the truck body using joints
body.joints["body_top"].connect_to(cab.joints["cab_base"])

# Show the result
show(body.part, cab.part)

This example demonstrates how to design a toy truck using BuildPart and BuildSketch in Builder mode. The model includes a detailed body, cab, grill, and bumper, showcasing techniques like sketch reuse, symmetry, tapered extrusions, selective filleting, and the use of joints for part assembly. Ideal for learning complex part construction and hierarchical modeling in build123d.

Vase

This example demonstrates the build123d techniques involving the creation of a vase. Specifically, it showcases the processes of revolving a sketch, shelling (creating a hollow object by removing material from its interior), and selecting edges by position range and type for the application of fillets (rounding off the edges).

Sketching: Drawing a 2D profile or outline that represents the side view of the vase.
Revolving: Rotating the sketch around an axis to create a 3D object. This step transforms the 2D profile into a 3D vase shape.
Offset/Shelling: Removing material from the interior of the solid vase to create a hollow space, making it resemble a real vase more closely.
Edge Filleting: Selecting specific edges of the vase for filleting, which involves rounding those edges. The edges are selected based on their position and type.
